PXe-BLS Dual Redundancy AC Power Supply with redundancy for mission critical loads

The PX-BLS Series AC output Power Supply is used for mission-critical applications where loss of power would be catastrophic or highly disruptive at best.  The PX-BLS is different to a UPS, as it is powered from two independent energy sources, meaning it is both dual input fed and intelligent, reporting status over TCIP to mobile devices – drawing energy from the available ac or dc sources. Rack mountable and easy to install, its key features are listed below:-

Dual Input Design:

  • Equipped with a 96V / 110V / 220V / 230V AC power supply
  • Also features a 24V / 48V / 110V / 220V DC power supply

Communication Application Focus:

  • Specifically designed for the high reliability requirements of communication systems with status reporting

Filling a Gap:

  • Addresses a need between traditional UPS power supplies and ac sine wave inverters

Clean, Stable, and Durable AC Power:

  • Utilises a novel design structure to provide clean, stable AC power for mission critical loads, using two power sources

Seamless Conversion:

  • A dedicated sine wave inverter that ensures seamless conversion from both AC and DC power supply inputs

High Reliability:

  • Offers the same MTBF / High Reliability as DC power supply systems, focusing dependability for critical applications

No Conversion Delay:

  • Boasts minimal conversion delay during its changeover from available energy sources of ac or dc

No Need for Static Switch:

  • Eliminates the need for a static changeover switch in the conversion process.  There is no changeover time.

In summary, the PX-BLS Series AC Power Supply meets the demanding requirements of critical applications, like communication systems, offering a triple redundant fail-safe solution for critical power supply applications.  Its dual input inverter design and seamless changeover focuses on applications where uninterrupted high-quality ac power is crucial.



AC power supply with redundancy and fail-safe operation





Applications

  • Telecom base station/ Cable TV Equipment
  • Communication Station
  • Computer data centre
  • SCADA Networks and Data Equipment
  • Phone and cell base stations
  • Radio Base stations / Cell Sites
  • Monitoring centre room
  • City WIFI device
  • Emergency communication systems
  • Railway & metro networks
  • Distributed Antenna Systems
  • Building Management Systems
  • Fire Alarm Systems
  • Power utilities System Control Scada
  • Power plant control and data systems
  • Power monitoring systems
  • Solar power system PV comms
  • Wind energy system



Features

  • True sine wave output (THD% < 2.5%)
  • Large 128*64 digital LCD display
  • Standard 19” Rack mount case
  • Volt-free contact: DC input fault, AC input fault
  • System/Status reporting, fault reporting, by-pass
  • RS232, RS485, Modbus RTU and TCIP comms Ports
  • Power-on self-test, Soft start for output
  • Auto switch function: DC to AC, AC bypass in 5mS
  • Audible and visual alarm
  • Automatic start temperature control fan
  • Build in voltage regulator Stabilize AC voltage
  • Maintenance bypass / DC available
  • Protection : Short circuit protection, over load protection, battery over/under voltage protection,
  • Unattended operation: the system switches automatically to ensure continuous AC Power to the critical load
  • Automatic selection between DC input and AC input

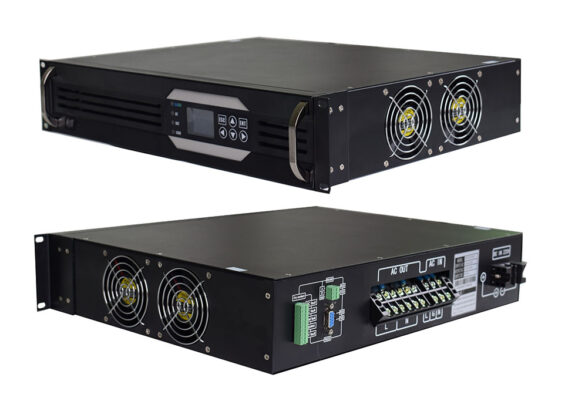

PX-BLS Back Panel

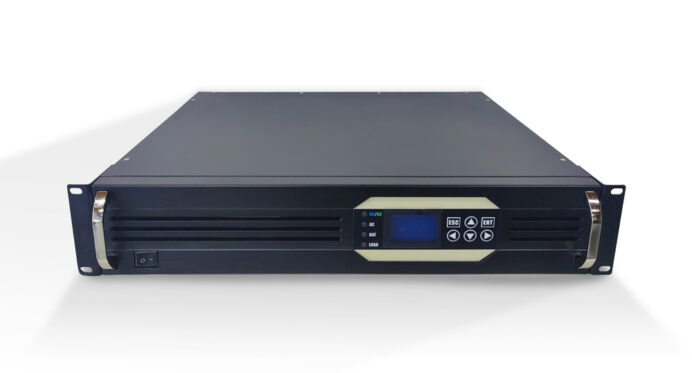

PXe-BLS AC Power Supply

Comms Background Program

BLS Inverter Background Program

Hardware structure and working principle

Hardware structure and working principle

AC power supply mode

AC power supply mode

Namely AC inverter working mode: the inverter employs mains for load when there is mains and

switches to inverter working mode when the mains is abnormal.



DC power supply mode

DC power supply mode

Namely DC-dominated inverter working mode: under normal condition,

DC-dominated inverter is under inverter output status all the time; in case

of DC fault, it switches to mains by-pass.

Technical Index (VA) 1KVA 2KVA 3KVA 4KVA 5KVA 6KVA 8KVA 10KVA
INPUT 22Vdc—28Vdc Rate Voltage 24Vdc, Power off Voltage:≤20Vdc, ≥30Vdc,
45.5Vdc—57Vdc Rate Voltage 48Vdc, Power off voltage≤40Vdc, ≥60Vdc
104Vdc—131Vdc Rate Voltage 110Vdc, Power off voltage≤90Vdc, ≥135Vdc,
208Vdc—260Vdc Rate Voltage 220Vdc, Power off voltage≤180Vdc, ≥275Vdc,
24Vdc input Max current 42A/42A 83A/83A 125A/125A X X X X X
48Vdc input Max current 21A/21A 42A/42A 63A/63A 83A/83A 104A/104A 125A/125A 167A/X 208A/X
110Vdc input Max current 9A/9A 18A/18A 27A/27A 36A/36A 45A/45A 55A/55A 72A/X 90A/X
220Vdc input Max current 4.5A/4.5A 9A/9A 13.5A/13.5A 18A/18A 22.5A/22.5A 27A/27A 36A/X 45A/X
By-pass Voltage Range 180Vac~260VAC /90Vac~132Vac
Current 4.5A/8.3A 9.1A/16.5A 13.6A/26A 18.2A/33A 22.7A/41A 27.2A/50A 36.3A/x 45.4A/x
By-pass Transient time ≤5ms
frequency 50/60Hz
AC OUTPUT Output Capacity(VA) 1KVA 2KVA 3KVA 4KVA 5KVA 6KVA 8KVA 10KVA
Rated output Power(W) 0.8KW 1.6KW 2.4KW 3.2KW 4KW 4.8KW 6.4KW 8KW
Rated Output current 3.6A 7.3A 11A 14.5A 18.2A 21.8A 29A 36.3A
Output Voltage 220Vac(±10V)/110V(±5V) ,Adjustable LCD display
Output Voltage precision(V) 220V±1.5%/110V±1.5%
Power factor >0.8
Inversion efficiency(80%) ≥85%(80% liner Load)
Over load 100%-120% 60s ,121%-150% 10s
Dynamic response time Dynamic response time: < 5% Vnom for load change 0% to 100%, transient time < 5ms
Waveform Pure sine wave
By-pass Switch time ≤5ms
Output Frequency precision 50Hz/60Hz
Output Frequency 50-60Hz(auto sync with bypass input)
THD ≤3%
Indication LCD display Input and output Voltage, Frequency ,Output Current,Temperature,Percentage,LOGO etc.
Inverter Status Normal Mains, Normal Inversion, Battery Under-voltage and output overload
COMPLIANCE LVD EN 60950-1
EMC/EMI EN 61000-6-3; EN 61000-6-1 ;IEC 61000-6-2 and IEC 61000-6-4
Cooling Temperature control 2 Fans 4 Fans 6 Fans 4 Fans
Color Black /Customizable
Dimensions 482mm/347mm/88mm W/D/H 2U 482mm/430mm/88mm W/D/H 2U 482mm/470mm/176mm 4U
Protection Internal Protection Overload Protection, Over temperature protection, Short circuit protection, Input ac voltage limit protection ,Reverse polarity on dc input side
Input DC Voltage Alarm Battery Under-voltage,
LCD Audible and visual alarm false Red LED light and Beebe
Temperature Temperature control fan
Alarm record standard is 1000 events (alarms), minimum is 100
Interface 5 Routes Dry relay contact For remote indication of alarm / shut down conditions
RS232& RS485 Both of available, For remote operation and monitoring
Option SNMP ,TCP/IP
Dielectric strength between output and input 3500Vdc/10mA//1min . No flashover, no breakdown
between input and chassis 3500Vdc/10mA//1min . No flashover, no breakdown
between output and chassis 750Vdc/10mA//1min. No flashover, no breakdown
Dielectric strength 1500Vac.1 minutes (Input and output)
Working Environment Noise(1m) ≤40dB
Operating Environment Temperature -20℃~+50℃
Humidity 0~90%, No moisture condensation
Operating Altitude (m) Altitude Full power up to 2000m.derating -2% / 100m, max altitude 5000m
Humidity 5…95%, non condensing
