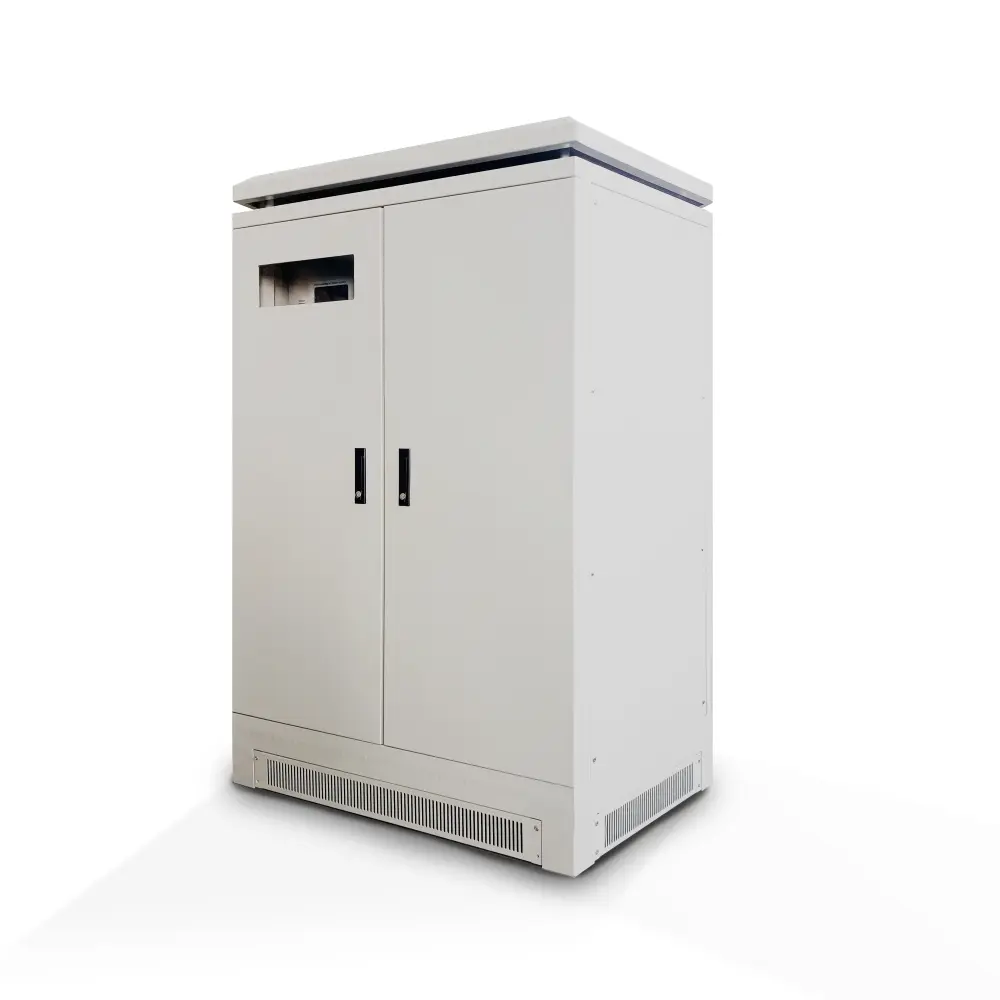

PXe Commercial Static Frequency Converters SFC

A robust, solid-state solution for AC frequency conversion. PX Electronics Commercial Static Frequency Converters are ideal for testing, industrial, aerospace, and marine applications.

Highlights:

Flexible frequency conversion: Supports standard conversions (50 Hz ↔ 60 Hz, 50/60 Hz → 400 Hz) and custom output frequencies (e.g., 6.67 Hz, 25 Hz, 100 Hz)
Scalable capacity: Available in single- and three-phase models ranging from 0.5 kVA to 200 kVA (and up to 2000 kVA in extended PXe series)
Clean, reliable output: Uses PWM and IGBT-based inversion with built-in rectifier and isolation transformer to deliver low THD, pure sine wave output with galvanic isolation
User-friendly and protected: Features LED/LCD controls plus comprehensive protections (over-temperature, over/under-voltage, over-current, etc.)
Versatile applications:
- Product and compliance testing (e.g., voltage, frequency, drop-out conditions)
- Aviation & avionics (simulating 400 Hz power systems)
- Marine & shore power integration
- Lab and industrial equipment testing
- Variable-speed motor/fan/pump control setups

Click here for our generic datasheet Click here for a sample specification

Our Static Frequency Converters are designed specifically with your requirements in mind. For a quote and performance specific to your needs please provide us with the following:

Input: No. of Phases / Voltage / Frequency

Output: No. of Phase / Voltage / Frequency [max inrush]

Capacity: kVA or output current

Control: Manual or interface

Applications of PXe Commercial Static Frequency Converters include:

Performance testing of appliances, allowing for accurate testing of appliances under different frequency conditions
Compliance testing of dropout and regulation: Ensures equipment meets regulatory requirements
Aviation and avionics LRUs: Supports the operation and testing of avionics equipment used in aircraft
Aircraft systems: Provides the necessary power conversion for aircraft systems relying on different frequencies
Industrial electrical equipment: Enables the operation of equipment requiring specific frequencies in industrial settings
Marine power solutions: Supports power conversion needs for 60Hz powered marine vessels docking to 50Hz shore power
Shoreside power solutions: Provides frequency conversion capabilities for ac power sources at docks, ports and harbours
Laboratory and test instruments: Facilitates accurate frequency testing for laboratory equipment
Variable speed motors, fans and pumps; allows operation of these devices at different frequencies as required

We have a variety of models available, please see below for some popular configurations: All combinations of Voltage and Frequency are available, please ask for further details

PXe-330020E – Input: 3 phase | 440V | 60Hz – Output: 3 phase | 230V | 50Hz – Capacity: 20kVA

Dimensions: 550 x 1200 x 1000mm – Weight: 300kg

PXe-330060 – Input: 3 phase | 400V | 50/ 60Hz – Output: 3 phase | 115v | 400Hz – Capacity: 60kVA

Dimensions: 1000 x 700 x 1550mm – Weight: 480kg

PXe-330080 – Input: 3 phase | 240V | 50Hz – Output: 3 phase | 120V/ 208V | 60Hz – Capacity 80kVA

Dimensions: 1000 x 700 x 1550mm – Weight 600kg

PXe-330200W – Input: 3 phase | 400V | 50Hz – Output: 3 phase | 480V | 60Hz – Capacity: 200kVA

Dimensions: 1250 x 880 x 16100mm – Weight: 1100kg

PXe-330080 80kW Commercial Static Frequency Converter

PXe-330200W 200kW Commercial Static Frequency Converter

Technical Specification

Capacity
Single Phase output	kVA Ratings: 0.5kVA, 1kVA, 3kVA, 5kVA, 10kVA, 15kVA, 20kVA, 30kVA, 50kVA, 60kVA, 75kVA, 100kVA, 150kVA, 200kVA
Three Phase output versions	kVA Ratings: 1kVA, 3kVA, 6kVA, 9kVA, 15kVA, 20kVA, 30kVA, 45kVA, 60kVA, 100kVA, 150kVA, 200kVA, 300kVA, 400kVA, 500kVA~2000kVA (Select One kVA)
Input
Single phase (Select One Individual Voltage)	110Vac ±10%, 115Vac ±10%, 120Vac ±10% 127Vac ±10%, 220Vac ±10%, 230Vac ±10%
Three phase (Select One Individual Voltage)	115-127 (L-N) / 200-220V (L-L) ±10%,220-240 (L-N) / 380-415V (L-L) ±10%, 3 Phase 4wire 440V (L-L) ±10%, 480V (L-L) ±5%, 3Phase 3 Wire
Frequency	50Hz/60Hz ±5%, 400Hz (Optional)
Power factor	≥ 0.8 (standard type) ≥ 0.9 (optional type, 12 pulse)
Output
Single phase (Select One Individual Voltage)	Fixed: 110V, 115v, 120V, 127V, 220V, 230V, 240V Adjustable: 0~150Vac/0~300Vac
Three phase (Select One Individual Voltage)	Fixed: 115/200V (L-N/L-L), 120/208V (L-N/L-L), 127/220V (L-N/L-L), 220/380V (L-N/L-L), 230/400V (L-N/L-L), 240/415V (L-N/L-L), 254/440V (L-N/L-L), 277/480V (L-N/L-L), 3 Phase 4 Wire Adjustable: 0~260V (L-N)/0~520V (L-L), 3 Phase 4 Wire
Frequency	Fixed: 50Hz, 60Hz, 100Hz, 200Hz, 45-200Hz (adjustable) Optional: 400Hz/40Hz~500Hz (adjustable), 16.67Hz, 25Hz, 50Hz, 60Hz, 400-1000Hz
Voltage Accuracy	≤ ±1% FS (Full Scale)
Frequency Accuracy	≤ ±0.1% FS (Full Scale)
Total harmonic distortion	THD ≤ 3% @ linear load, pure sine wave output
Crest Factor (Pk/rms)	3:1
Overload	100% for continuous, 101-200% shut down in 200mS
Interface	Non for standard units, RS232C/RS485/GPIB (Optional)
Protection	Over-current, over-load, over-voltage, over-temp, short circuit, alarm and indicators
Enclosure IP Rating	IP22 (Standard), IP32, IP54 (Optional). Special enclosure options available
LED/LCD display	Digital frequency meter Digital voltage meter Digital current meter Digital power/PF meter
Connectors	Hard-wire terminals, EN60309, MIL-STD, Or client choice
Operating conditions
Temperature	Operation: -10℃~55℃ Ambient: -10℃~45℃
Noise	≤ 65dB at 1 meter EN 55022, IEC1000-4
Humidity	10~90% non-condensing
Cooling	Variable speed fan, filtered air intake in base, exhaust at rear
Altitude	≤ 1800m
Castors or Feet	0.5-3kVA have rubber feet and lifting handles, 4kVA+ have castors with front brakes. A/Vs or feet optional
CE	CE Marked
Reliability and Efficiency
Mean Time Between Failure (MTBF)	50,000Hrs
Mean Time To Restore (MTTR)	< 30 min
Overall efficiency	≥ 85%
Standards
GB50054-95, GB 50150-1991, GB 50150-2006, GB 50171-1992, GB/T 16935.5-2008, GB/T16935.4-2011
EN IEC61000-3-2, EN 61000-3-3, EN55032, EN55035, MIL-STD-1399, MIL-STD 461, MIL-STD704, STANAG 1008
For more information and support, please feel free to contact us

Quality

We are committed to providing products that meet international quality requirements. PX Electronic certifies that all products meet or exceed their published specification, European & USA safety requirements.
