PXe-1010A Phase Angle Voltmeter

The PXe-1010A Phase Angle Voltmeter, distributed exclusively by PX Electronics, is a highly anticipated upgrade to the popular SD1000 Volt Meter. It offers advanced capabilities, improved performance, and enhanced versatility compared to traditional Phase Angle Voltmeters (PAVs).

The instrument utilizes Discrete Fourier Transform algorithms, enabling precise measurements of various parameters. It specifically caters to the Synchro/Resolver and LVDT/RVDT market, which are commonly used in position sensing and motion control applications.

With the PXe-1010A, measuring Phase Angle, In-Phase, Quadrature (90° component), Fundamental, and Total Vrms becomes straightforward. The instrument features a bright multifunction display that simultaneously shows all these measurements. Isolated inputs allow for null, ratio (in-phase, quad, fund, total rms, sum+difference), and gain measurements of key parameters. Additionally, a reference offset facilitates bridging measurements, and a sensitive null meter ensures precise nulling.

PAVs are widely employed in applications such as aircraft instruments, aircraft control surfaces, inertial navigation systems, gyros, autopilot systems, and weapon aiming systems. These devices, including Resolvers, LVDTs, and RVDTs, convert mechanical movement and position into electrical signals, which are then used to feed control systems.

For further information, options, and pricing of the PXe-1010A Phase Angle Voltmeter, please contact PX Electronics directly.

You may also like our PXe-2640 Power Analysers:

PXe-2640 | Single Phase | Three Phase Power Analyser

PXe-1010A Phase Angle Voltmeter

PAV upgrade program for military users

For decades the SD10000 phase angle meter has been used worldwide by armed forces and in the aviation sector. PXElectronics offers an upgrade package converting the SD1000 phase meter to a fully functioning PAV1010A phase angle voltmeter. The benefits are large cost savings and continued compatibility with the user’s in-house computer test systems, documentation and size – whist adding full phase angle voltmeter capability along with multifunction display.

Calibration and World-wide Traceability

All measurements made using the PXe-1010A and SD1000 are traceable to National and International standards; through the measurement standards of PXElectronics. A certificate of conformance is supplied as required by quality assurance standards such as IEC17025/ISO9001. Independent third-party measurement certification and accreditation is possible using UKAS, A2LA or Z540/NVLAP certificate. PXElectronics provides optional LV calibration software and attenuators, permitting customers to automate their PAV1010A calibration in house.

PAV1010A phase angle meter applications

  • Phase angle measurement
  • Synchro, LVDT, RVDT actuators and positional sensors
  • Phase sensitive null detection
  • Transformer ratio and phase tests
  • Current sensing for phase meters
  • Phase angle indicators V-A / V-V
  • Cos Phi indicators – Power factor meters
  • Wideband power meters – power analysis
  • Current transformer calibration
  • Current probe phase delay
  • SCR phase control
  • Accelerometer testing
  • Current detection in detonation systems
  • Phase angle fault testing in power transmission substations
  • Chopper current control in electric vehicles
  • Phase angle controlled circuit breakers

WIDE BANDWIDTH – HIGH FREQUENCY – ULTRA LOW PHASE SHIFT
Used to enable PAV1010A phase angle voltmeter measurements between voltage and current

  1. Non-inductive shunt Model Series A
    Ultra low phase error 1A to 20A
  2. Non-inductive shunt Option 02F/B,
    2A – 50A
  3. Non-inductive shunt Option 02F/B 0.1A – 10A
Series A Shunt
1. Non-inductive shunt Model Series A Ultra low phase error 1A to 20A

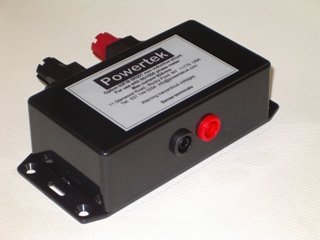

Non-inductive shunt Option 02F/B, 2A - 50A
2. Non-inductive shunt Option 02F/B, 2A - 50A
Non-inductive shunt Option 02F/B 0.1A - 10A
3. Non-inductive shunt Option 02F/B 0.1A - 10A

PAV1010A Specifications

Channels/display

2 isolated / 5 digits resolution 0.001° Null meter and Ratio

Measurement

For CH1 and CH2 Vrms, in-phase, fundamental, quadrature frequency, phase angle, power, VA, PF, THD (% or dB), impedance

Null Meter

1uV sensitivity, 25uV total mode noise (variability) min range

Voltage input range

5mV to 350Vrms (500Vpk).  1000Vpk optional

Phase input range

0.000° to -360.000°, 0.000° to +360.000°, 0.000° to ±180.000° Resolution 0.001°

Frequency range

0.5Hz to 140kHz, 500kHz with ext. sync

Common mode CMRR

0.5Hz to 999.99Hz : 126dB
1kHz to 5kHz: 110dB
5kHz to 32 kHz: 100dB
32kHz to 64kHz: 91dB

Harmonic Rejection

80dB (even and odd)

THD

±0.05%

Max input

±500Vpk

Input impedance

2M ohm 20pF

Coupling

AC or DC

Averaging

0.5, 3 or 10 seconds

Voltage and phase accuracy

Frequency

Voltage Rdg%+rng%

Phase angle Spec includes ranging and imbalance

Gain ratio

0.5Hz to 100Hz

±0.04% ±0.05%

±0.02° ± 1 digit

±0.02dB

>100Hz to 2kHz

±0.05% ±0.05%

±0.025° ± 0.005°/kHz ± 1 digit

±0.03dB

>2kHz to 10kHz

±0.08% ±0.08%

±0.035° ± 0.005°/kHz ± 1 digit

±0.04dB

>10kHz to 100kHz

±0.2% ±0.2%

±0.04° ± 0.005°/kHz ± 1 digit

±0.12dB

>100kHz to 200kHz

±0.75% ±0.75%

±0.25° ± 0.005°/kHz ± 1 digit

±0.2dB

Phase repeatability

± 0.005°

Frequency

Range

0.5Hz to 700 kHz

Accuracy

±0.1% (23°C ± 5°C)

Inputs

Voltage Range (operational)
Current ranges using Options 02F/B
All voltage and current input combinations are possible

1mV rms to 350V rms (500Vpk)
20mA – 2Arms range Opt. 02F/B 1R00 5Hz – 20kHz
1.0Arms to 20Arms range Opt. 02F/B 0R01 5Hz – 20kHz

Bandwidth

0.5Hz to 700kHz

Isolation (inputs to ground)

2000V

Impedance

2 Mohm and 20pF

Environment

Temperature

Operating

0°C to + 50°C, best accuracy 23°C ± 5°C

Storage

-40°C to +70°C

Humidity (non-condensing)

10% to 90% RH

Dielectric Strength

Inputs to case or AC line input

2kV AC 50/60Hz 1 minute

Power supply to case

2kV AC 50/60Hz 1 minute

Power Requirements

Line input voltage

110V or 220V AC ± 10%

Line input frequency

50/60Hz

Line input fuse

315mAT

Line input conformance

IEC348 Class I; EN61000-3-2; EN61010 Class I; IEC801 Parts 1 to 4; EN55011

Power consumption

25VA

Mechanical

Weight

5kg (6kg in delivery packaging)

Dimensions (W x H x D)

215mm x 144mm x 390mm

ORDERING INFORMATION.  Page rev. V1.3

PAV1010A (front input)
PAV1010AR (Rear input)
PAV1010AWR (Watts measurement and Rear input)
PAV1010A-1000V 1000Vpk option
-DC DC output option
SD-PAV1010A (upgrade and conversion of SD1000 to PAV1010A)
PAV1010A calibration software available Sept 2017
LabView software V1.02
